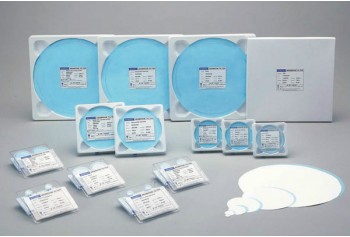

Mixed Cellulose Ester Membrane Filter (MCE Type)
Mixed Cellulose Ester Membrane Filter (MCE Type)
Mixed Cellulose Ester Membrane Filter (MCE Type) Mixed Cellulose Ester Membrane Filter (MCE Type)
Product Code: MCE
Availability: In Stock

* MFDMU Model: Qty:

Comment(s) / Special Request(s):

Add to Cart

- High porosity
- High protein binding
- Autoclavable
- Rapid wetting time

Product Mixed Cellulose Ester Membrane Filter (MCE Type)
Model A500A- A300A- A100A- A080A- A065A-
Pore Size 5 µm 3 µm 1 µm 0.80 µm 0.65 µm
Porosity 81% 80% 79%
Thickness 160 µm 155 µm 150 µm
Flowrate:
Water (mL/min)
Air (L/min)
400
40.9
300
28.3
220
20.4
165
15.0
120
11.2
Bubble Point (MPa) ≥ 5.8 x 10-² ≥ 7.0 x 10-² ≥ 9.6 x 10-² ≥ 0.11 ≥ 0.14
Field Food and environment



Product Mixed Cellulose Ester Membrane Filter (MCE Type)
Model A045A- A030A- A020A- A010A-
Pore Size 0.45 µm 0.30 µm 0.20 µm 0.1 µm
Porosity 78 75 73 65
Thickness 145 µm 140 µm 133 µm 110 µm
Flowrate:
Water (mL/min)
Air (L/min)
45
5.0
30
3.7
17.5
2.4
2.7
0.67
Bubble Point (MPa) ≥ 0.24 ≥ 0.28 ≥ 0.37 ≥ 0.24
Field Food and environment
