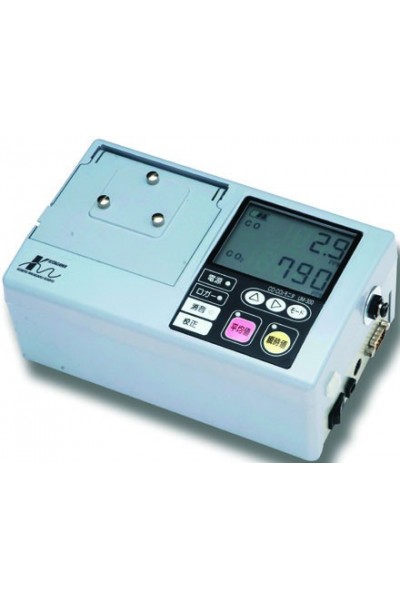

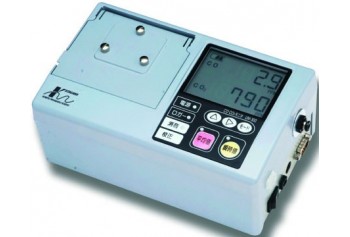

CO/CO2 Monitor (UM-300)
CO/CO2 Monitor (UM-300)
Product Code: UM-300
Availability: In Stock

Comment(s) / Special Request(s):

Add to Cart
Product CO/CO2 Monitor (UM-300)
Model UM-300
Measuring Gas Carbon Monoxide Carbon Dioxide
Detection Method Chronoamperometry NDIR
Measuring Range 0~100.0ppm 0~10,000ppm
Resolution 0.1ppm 10ppm
Indication Accuracy ±2.5ppm at 0~10ppm

±5ppm 11~100ppm		 ±50ppm at 0~2,000ppm

±100ppm at 2, 010ppmm~5,000ppm

±500ppm at 5,010ppm~10,000ppm
Operating Time 6 hours with alkaline dry battery
Power Supply 4 x AA size alkaline dry battery (AC adaptor with nickel hydride rechargeable battery are optional)
Warming-Up Time ~ 1min (including auto zero adjustment time)
Operating Temperature 0~40˚C; 0~90˚RH(non-condensing)
Dimensions 230(W) X 90(H) X 137(D) mm
Weight Approx. 1kg (excluding batteries)
Analog Output DC 0-1V/1000 segment (linear)
Additional Info -
